Thermal insulation aluminum tile

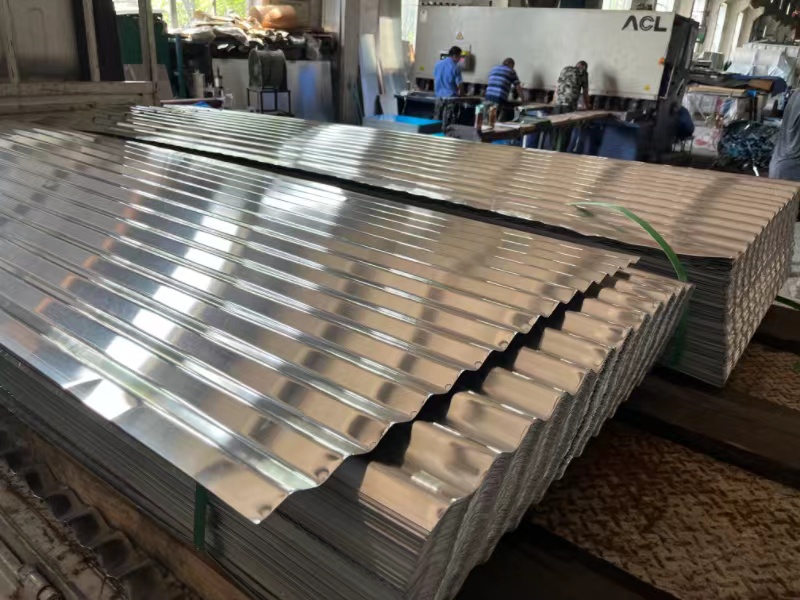

Corrugated aluminum plate, also known as aluminum tile. It is one of the commonly used products in architecture. At present, there is a trend to replace stainless steel and iron plate.

Advantages of corrugated aluminum plate:

First of all, since the density of aluminum is only 2.71 and the density of iron is 7.8, the weight of aluminum tile per square meter is less than 1 / 3 of that of stainless steel, which greatly reduces the cost of the enterprise and reduces the pressure of the bracket.

Secondly, aluminum has good anti rust effect. In the external environment, rain, sun exposure and heavy snow do little damage to aluminum. It is not like iron sheet. It will rust quickly after seeing rain,

From the above two points, it can be seen that aluminum tiles can completely replace stainless steel materials to a large extent, and at the same time, the cost is lower. They are the materials of the construction industry.

Main tile type: yx35-125-750 (v125) aluminum tile; Yx25-205-820 aluminum tile; Yx23-210-840 aluminum tile; Yx14-65-850 (ARC) aluminum tile; Yx12-100-880 aluminum tile; Yx15-225-900 aluminum tile;

Aluminum tiles and corrugated aluminum tiles are widely used in various construction industries and can be sprayed with fluorocarbon. The main colors are customized by customers according to Raul color cards. The commonly used colors are red, blue and white.

Main specifications

Wide application: Aluminum tiles can be used as roofs and walls, and used in various plants, workshops, refrigerated containers and residential construction

Very extensive. Our high-quality aluminum tile products can be used in various construction facilities.

Quality assurance: Aluminum tiles can cope with all kinds of weather. The service life is long, and it will not appear in ultraviolet radiation and cold and hot environment all the year round

Cracks, bubbles and peeling off. The aluminum corrugated plate can cope with all kinds of bad weather.

Easy installation: as a building plate, it is easy to install. The construction of similar plank houses can be realized by the installation team of several workers

Compared with traditional buildings, the construction period is short and the installation is convenient. It is very popular in the markets of Africa, the Middle East and the Americas.

Alloy selection: refer to the national standard GB / t3190-2006 for the chemical composition of aluminum alloy for aluminum tile. According to the alloy composition, 1050 and 1060 belong to pure aluminum, and the aluminum content is above 99.5%; 3003 is an aluminum manganese alloy with good hardness and rust prevention function; 5052 is an aluminum magnesium alloy with higher hardness and is less applicable in aluminum tiles. 1060 or 3003 alloy is recommended. 1060 alloy is widely used and the price is lower than 3003 alloy.

Color spraying: customers generally choose polyester spraying (PE) single-sided coating. The color is mostly white, blue or red. It is suitable for outdoor aluminum tiles. Polyester spraying has a long service life and is not easy to change color. This coating can ensure that it will not fade for at least ten years. The price is also higher than ordinary light aluminum (without coating)
